GRID CONNECTED SOLAR PV SYSTEM

With or Without Battery

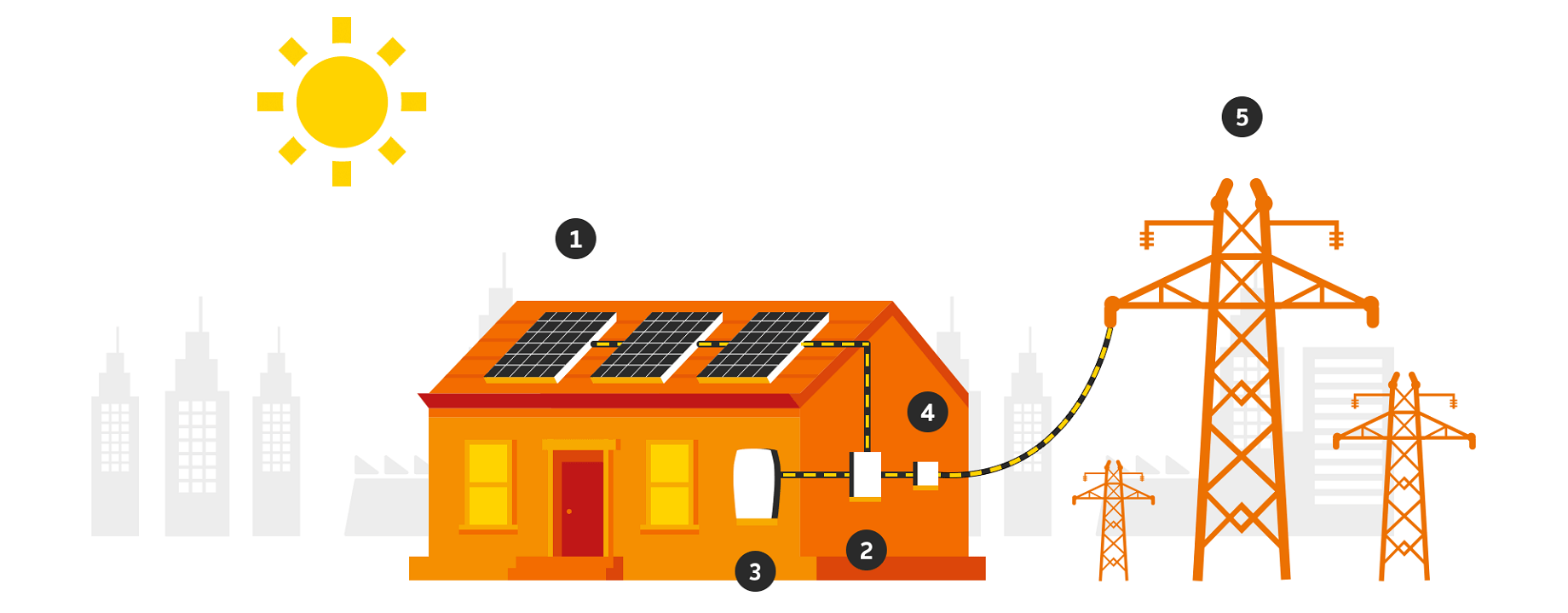

  • 1. PV Panels: Convert sunlight into Direct Current (DC).
  • 2. Inverter: Converts DC into Alternating Current (AC) to power home appliances.
  • 3. Battery: Stores excess energy for use during the night or cloudy periods.
  • 4. Utility Meter: Bi-directional meter records energy import/export.
  • 5. Utility Grid: Excess energy is sent to the grid for possible tariff payments.
Grid Solar System

Key Features of a Grid-Connected PV System:

OFF-GRID SOLAR PV SYSTEM

An "off-grid system" is an independent power solution that operates without connection to the main electrical grid. It generates its own electricity, stores it in batteries, and does not depend on a utility provider. Usually powered by renewable sources like solar panels, off-grid systems are perfect for remote areas where grid access is unavailable. In short, it's a self-reliant energy system entirely separate from the grid.

Off-Grid Solar System

Key Features of an Off-Grid PV System:

  • Independent from the Grid:Off-grid systems operate completely independently from the public electricity grid, providing power to locations without access to grid electricity.
  • Energy Storage with Batteries:Off-grid systems include battery storage to store excess solar energy for use during times when solar generation is low, such as at night or on cloudy days.
  • Renewable Energy Source:Solar panels are the primary energy source, capturing sunlight to generate electricity, making the system environmentally friendly and sustainable.
  • Autonomous Power Supply:Off-grid systems provide a self-sufficient energy solution, ensuring a continuous power supply without needing external utility services.
  • Customizable Size and Design:Off-grid systems can be designed and scaled to meet the specific energy needs of remote homes, cabins, farms, or small communities, ensuring reliable power regardless of location.

Ideal Applications:

Perfect for remote areas, farms, cabins, or anyone looking for complete energy autonomy.
